Alka

Alka runs Java plugins from config files, and shows them in a diagram.

You write small components as plain jars. A config file says which ones to load and how they are connected. Alka Studio draws that as a diagram, edits the settings, starts and stops the service and shows its log.

Download 0.1.0 Read the docs

Needs Java 25. It has only been tried on Windows. 0.1.0 is the first public version, so things can still change.

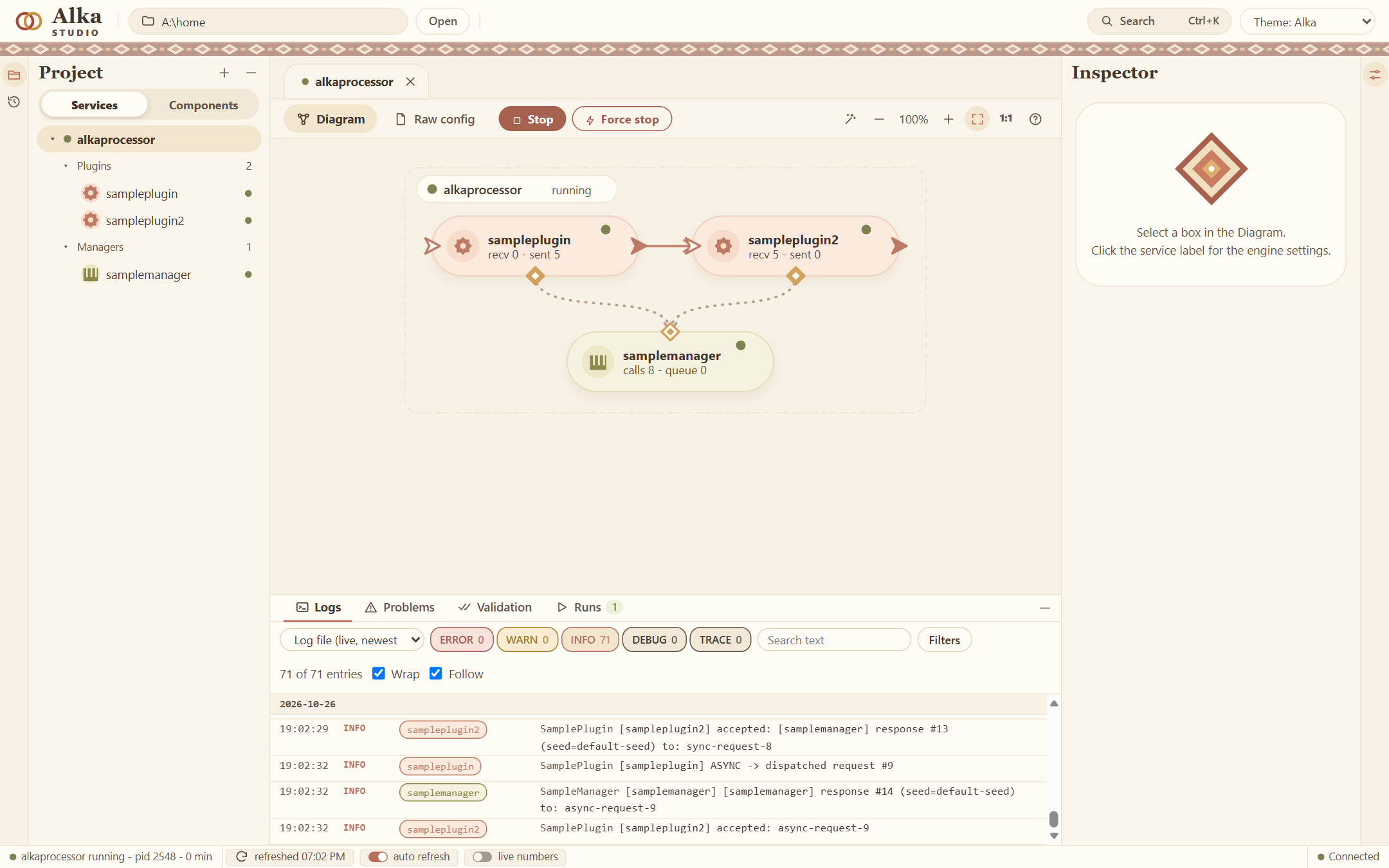

Alka Studio with the demo service running: two plugins and a manager in a diagram, the log below
The Studio with the demo service running.

How it works

A plugin does the work: it reads something, answers something, calls something, and sends events on to other plugins.

A manager holds something that plugins share, like a connection or a cache. Which manager a plugin gets is decided in the config, not in the code.

Each of them is a jar. A service is a few lines of config that name the jars and connect them. The settings of a component are declared on its class, and the Studio makes a form from them:

@AlkaSettings(description = "Greets its manager.", value = {
    @Setting(key = "hello.intervalSeconds", type = SettingType.NUMBER,
             defaultValue = "2", min = "1", max = "3600",
             description = "Seconds between two greetings.")
})
public class HelloPlugin extends ObjectPlugin { /* init, run, stop, accept */ }

The Studio

Drag a jar onto the diagram, draw a line between two boxes, change a setting, press Start. The Studio writes the config and keeps the older versions of every file. It checks the service before it starts, and shows the log with filters and the numbers of every box while it runs.

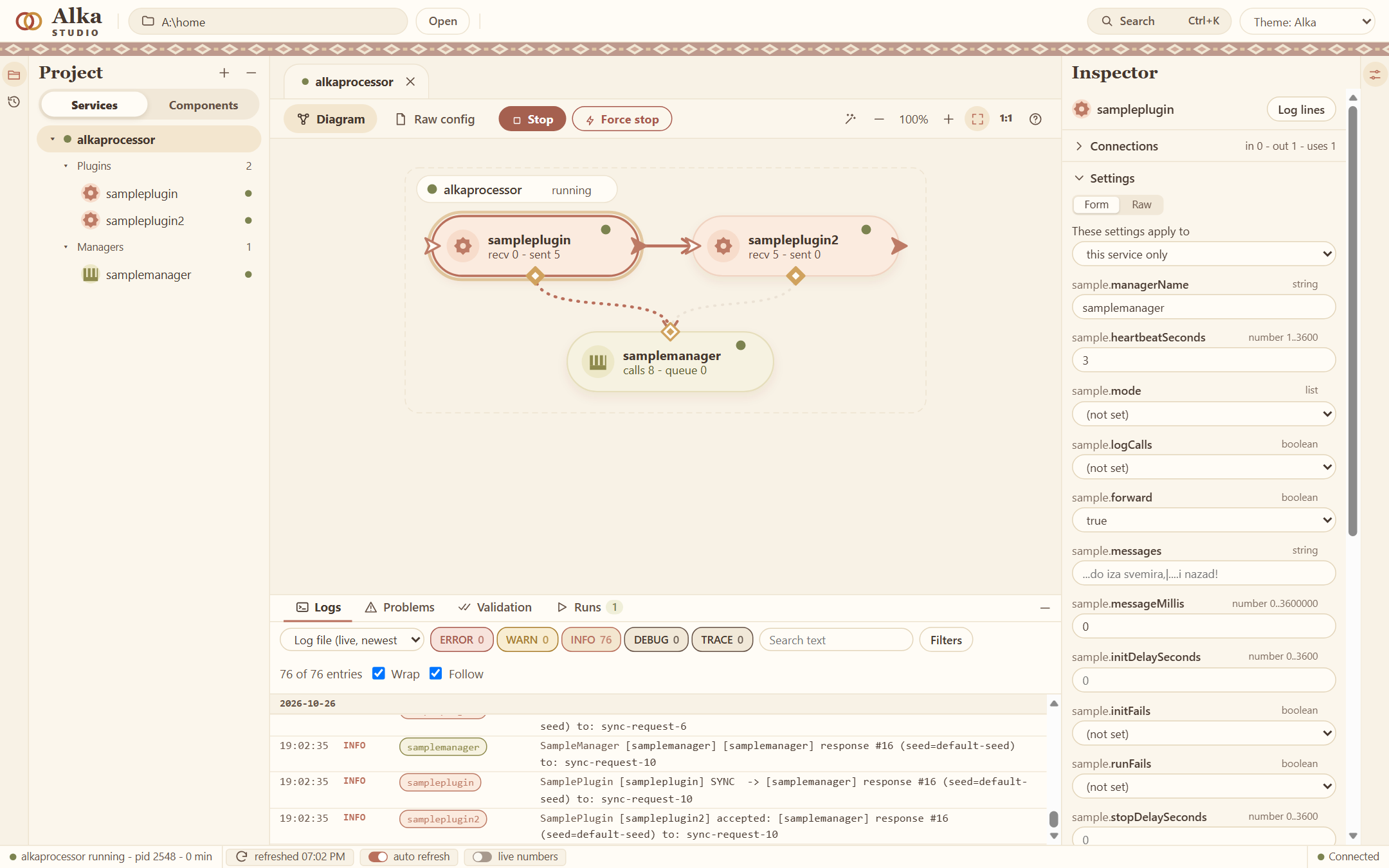

Alka Studio with a plugin selected: its settings as a form on the right
A plugin selected: its settings are a form.

Try it

  1. Download alka-0.1.0.zip from the latest release and unzip it.
  2. Start studio.bat (./studio.sh on Linux and macOS). Select the service alkaprocessor and press Start. That is the demo: one plugin talks to a manager and passes the answer to a second plugin.
  3. To make your own, you need Maven 3.9. This makes a project with a manager, a plugin and a service:
    mvn archetype:generate -DarchetypeGroupId=com.alkadev \
  -DarchetypeArtifactId=alka-sample-archetype -DarchetypeVersion=0.1.0
  4. Build it and copy it into the home folder of the package. It shows up in the Studio:
    cd myalka
mvn install
mvn package alka:deploy -Dalka.home=<the folder "home" of the package>

More in Your first plugin and How Alka works.

License

The API, the Maven plugin, the project generator and the samples are Apache 2.0. They are on GitHub and on Maven Central (com.alkadev).

The engine and the Studio come as a package and are free for noncommercial use (PolyForm Noncommercial 1.0.0, with a few added terms). For commercial use, open an issue and ask.
